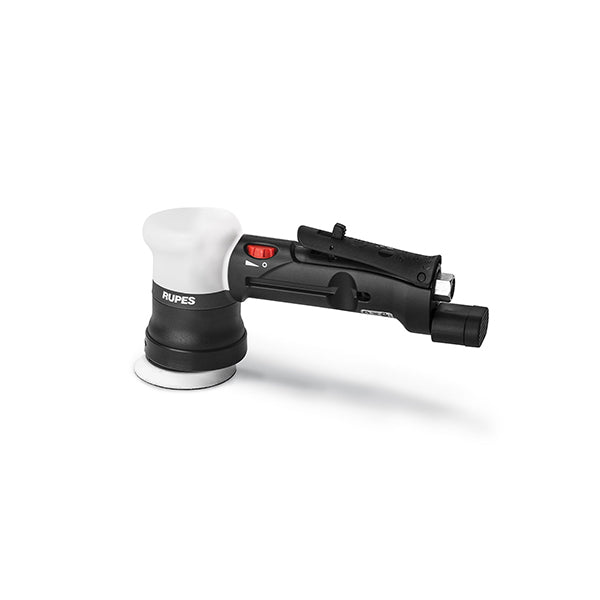

RUPES TRIPLE ACTION PNEUMATIC POLISHER 75 MM DIAMETER

• RUPES TRIPLE ACTION PNEUMATIC POLISHER
• GREATER PERFORMANCE UNIFORMITY
• GREATER EFFICIENCY AND VIBRATION REDUCTION

Rupes Pneumatic triple action Bigfoot polisher offers a new type of movement known as TRIPLE ACTION. The power of an engine can be expressed as the product of torque multiplied by speed. During normal use of a tool, the operator applies a variable load, which due to the friction forces and the work done by the motor could be such as to reduce the number of revolutions of the motor and, in the case of a random orbital DA, is such as to reduce the number of revolutions of the disc to zero.

The load applied by the operator during normal use of a tool varies greatly over time, leading to large variations in the speed of the number of orbits and rotation of the rotor disk and consequently reducing the uniformity and effectiveness of the work operation. A more homogeneous process leads to a significant reduction in working times. In the case of triple action tools, and similar to the movement of DA random orbital tools, the disc, typically circular, follows an orbit and is free to rotate around its central axis but, thanks to a special epicyclic reducer located in front of the cam group, the torque value is significantly increased while at the same time the speed is reduced.

Bigfoot triple action pneumatic polisher with the use of this solution substantially minimizes the impact of a performance variable (the load applied by the user) and, consequently, greater uniformity of tool performance. This provides a notable improvement in surface finish as well as a drastic reduction in vibration levels. From the first use it is clear how advantageous this configuration is in terms of effectiveness and vibration reduction, all thanks to the introduction of the epicyclic reducer; this is a technical improvement that improves and changes the functionality of the tool so profoundly as to deserve a new category of movement, the TRIPLE ACTION.
